Oil Circuit Breaker vs Vacuum Breaker: Choosing the Right Interrupter

The choice between an oil circuit breaker and a vacuum (or SF6) breaker comes up every time a utility retrofits a substation, builds a new bay, or sizes a replacement for a failed unit. Each technology has a place. Getting the decision right saves both money and maintenance hours over the next 40 years.

How an oil circuit breaker interrupts current

An OCB uses oil for two jobs: insulation and arc quenching. When the contacts part under fault current, the arc vaporizes a small volume of oil into a high-pressure gas bubble (mostly hydrogen). That gas carries the arc energy away from the contact face and forces the arc to extinguish at a current zero.

Two main families. Bulk-oil breakers (GE FK series, Westinghouse GO and GW, ITE 14-4KS) have the contacts immersed directly in a large tank of oil. Minimum-oil breakers use a much smaller volume of oil contained in interrupter pots, with the structural insulation handled by porcelain or composite bushings.

OCBs are robust, well-understood, and widely deployed. They are also the technology most utilities are retrofitting out, because of the maintenance overhead and the environmental risk of large oil volumes sitting on a substation pad.

How a vacuum breaker interrupts current

A vacuum breaker uses a sealed glass or ceramic interrupter holding a near-perfect vacuum (less than 10⁻⁴ torr). Fixed and moving contacts inside. When the contacts part, metal vapor from the contact surface forms a brief plasma that conducts the arc, then collapses at the first current zero. The recovery dielectric strength in a vacuum gap is extraordinarily high, measured in kilovolts per microsecond.

No moving fluid. No gas to maintain. The interrupter itself has effectively zero scheduled maintenance for its life, which is typically 10,000 or more mechanical operations and 30+ years. The external mechanism still needs maintenance: operator springs, drive linkages, contact alignment. But the part that does the actual interrupting is sealed for life.

Medium-voltage substations (15 kV through 38 kV) almost universally specify vacuum for new installations now.

SF6 — the third family

Sulfur hexafluoride (SF6) breakers use SF6 gas as both insulator and arc-quenching medium. SF6 has roughly three times the dielectric strength of air at the same pressure, and it is exceptionally effective at extinguishing arcs.

SF6 owns the transmission-voltage space (69 kV and above) because vacuum-interrupter manufacturing gets very difficult at higher voltages. Almost every new high-voltage breaker built in the last 30 years is SF6.

The catch is SF6's global warming potential, roughly 23,500 times CO₂. Regulators are tightening leak-rate requirements every year, and several utilities have pledged SF6-free new installations by 2030. Vacuum-air hybrid designs are emerging at transmission voltage, but they are not yet cost-competitive.

The comparison that actually matters

Maintenance burden: vacuum < SF6 << OCB. An OCB needs oil DGA, oil filtering, and contact inspection every three to five years. A vacuum breaker needs a mechanism check on the same interval, but the interrupter is untouched.

Outage time for maintenance: pulling a bulk-oil breaker for contact replacement is a two- to three-day outage and significant labor. A vacuum-breaker contact-stack replacement is rarely needed at all.

Fault-clearing speed: vacuum and SF6 clear faults in three to five cycles. Modern OCBs clear in five to eight. For grid stability on high-fault-current systems, faster is better.

Environmental risk: OCBs hold 100 to 500 gallons of insulating oil per breaker. A failure with breach can dump that oil into the substation containment. Vacuum breakers have effectively zero environmental exposure.

Capital cost: vacuum is cheapest at 15 to 38 kV. SF6 is cheapest at transmission voltages. OCB acquisition cost is competitive, but lifecycle cost (maintenance, outages, oil disposal) is higher.

Service life: all three can run 40+ years with appropriate maintenance. The constraint is usually obsolete parts or insurance considerations, not the technology.

When the right answer is still an OCB

Replacing a failed OCB with another OCB makes sense in a few cases.

The substation has multiple identical OCBs already in service, and standardizing on one technology simplifies parts inventory and crew training.

The bay was built to OCB dimensions and rebuilding the foundation for a vacuum or SF6 unit is not justified by the avoided maintenance.

The existing OCB is recently refurbished, and the failure was a recoverable component (contacts, bushings, operator) rather than a structural breakdown.

Utilities running fleets of GE FK, Westinghouse GO, Siemens SDO, or Allis-Chalmers BZO breakers have a well-established parts inventory and reverse-engineered replacements are readily available. A full shop remanufacture brings these breakers back to factory specification with a one-year warranty.

When to retrofit to vacuum

Retrofit makes sense when the OCB has reached end-of-life and a refurb is not economical. Or when the substation is in a sensitive location (residential, near water, near sensitive infrastructure) and oil-spill risk is unacceptable. Or when the utility's strategic direction is to standardize on vacuum across the fleet to simplify the skill set crews have to maintain. Or when fault levels have grown past what the original OCB was rated to interrupt.

Vacuum retrofit kits exist for many common OCB frames as drop-in replacements that preserve the original cabinet, operator, and termination points. The vacuum solution is rarely cheaper on day one, but it pays back over 10 to 15 years through avoided maintenance.

Where contact replacement parts fit

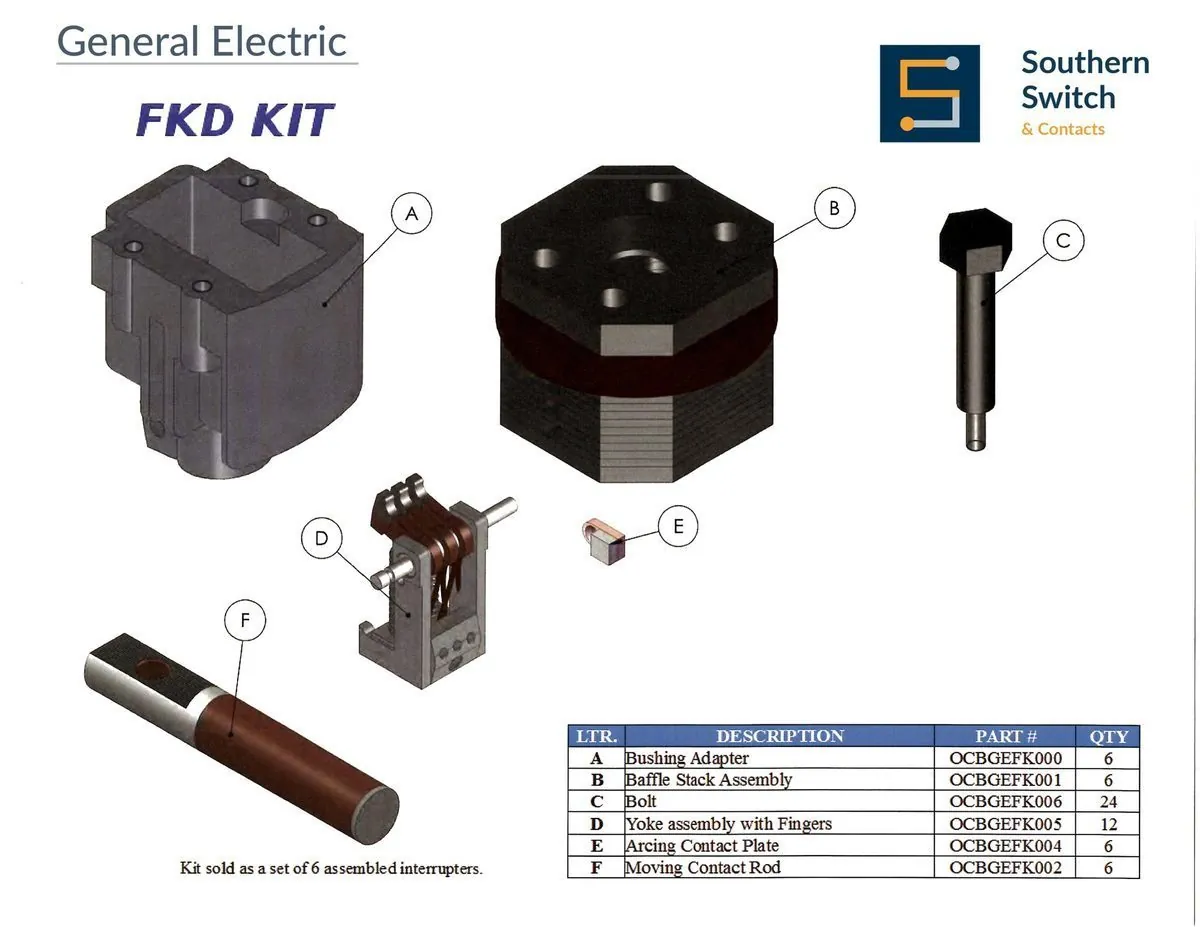

Whether you keep the OCBs in service another 20 years or use refurbishment to bridge a planned retrofit window, contact replacement parts are the deciding factor on cost. Most OCB failures we see are contact-driven: pitted arcing contacts, eroded main contacts, broken fingers, fatigued springs. Replacement contacts machined to OEM specification (or reverse-engineered from a sample when the OEM no longer supplies them) bring the breaker back to factory-spec interrupting performance.

For high-voltage SF6 breakers the equivalent question is gas-handling and interrupter-assembly inspection. Different parts, same logic.
