LTC Maintenance Schedule: When to Inspect and Replace Contacts

There is no universal right answer for how often to pull an LTC. What matters is matching the cycle to what the unit actually does, and trending the right signals so the calendar interval does not lie to you.

Calendar-only maintenance misses fast-cycling LTCs

Most utilities run on time-based maintenance. Pull the LTC every five or seven years, full stop. That works as a floor, but it misses the unit that just clocked 30,000 operations in 18 months because a feeder rebuild changed the loading profile.

A defensible LTC program runs three triggers in parallel. Whichever fires first is the one you act on.

Trigger 1: operation count

Tap-operation counters are usually accurate, and the manufacturer's recommended inspection interval is your starting point.

For resistance-type LTCs (GE LR/LRT, McGraw-Edison 550, Reinhausen MR), plan on a contact inspection every 50,000 to 100,000 operations or every five to seven years, whichever hits first.

For reactance-type LTCs (Westinghouse URT/UTT, Allis-Chalmers TLG/TLH, Federal-Pacific TC-525/TC-546), the interval is longer: 100,000 to 200,000 operations or seven to ten years.

These are starting points, not gospel. A heavily-loaded transmission unit might need a three-year cycle. A lightly-loaded distribution unit can stretch to ten with no consequence. The DGA tells you which one you have.

Trigger 2: DGA trend

Annual dissolved gas analysis on the LTC compartment is non-negotiable. The trigger is not an absolute number — it is a change.

A stable elevated acetylene reading tells you the unit has been arcing for a while, but at a steady rate. A step jump between samples is the one to act on. That is the unit transitioning from normal wear to accelerated wear, and waiting for the next annual sample is how you find the transformer offline.

Trend the data over five or more years. Spikes are obvious. The slow ethylene drift that signals a developing failure is only visible in trended data.

Trigger 3: visual and operational symptoms

Oil color in the sight glass going darker. Tap response getting sticky. Audible knocks during operation. Counter-versus-controller mismatch alarms. Any one of these justifies an off-cycle inspection even if the operation count says you have years left.

These symptoms almost never lie. They are also almost always ignored because the unit is still functioning.

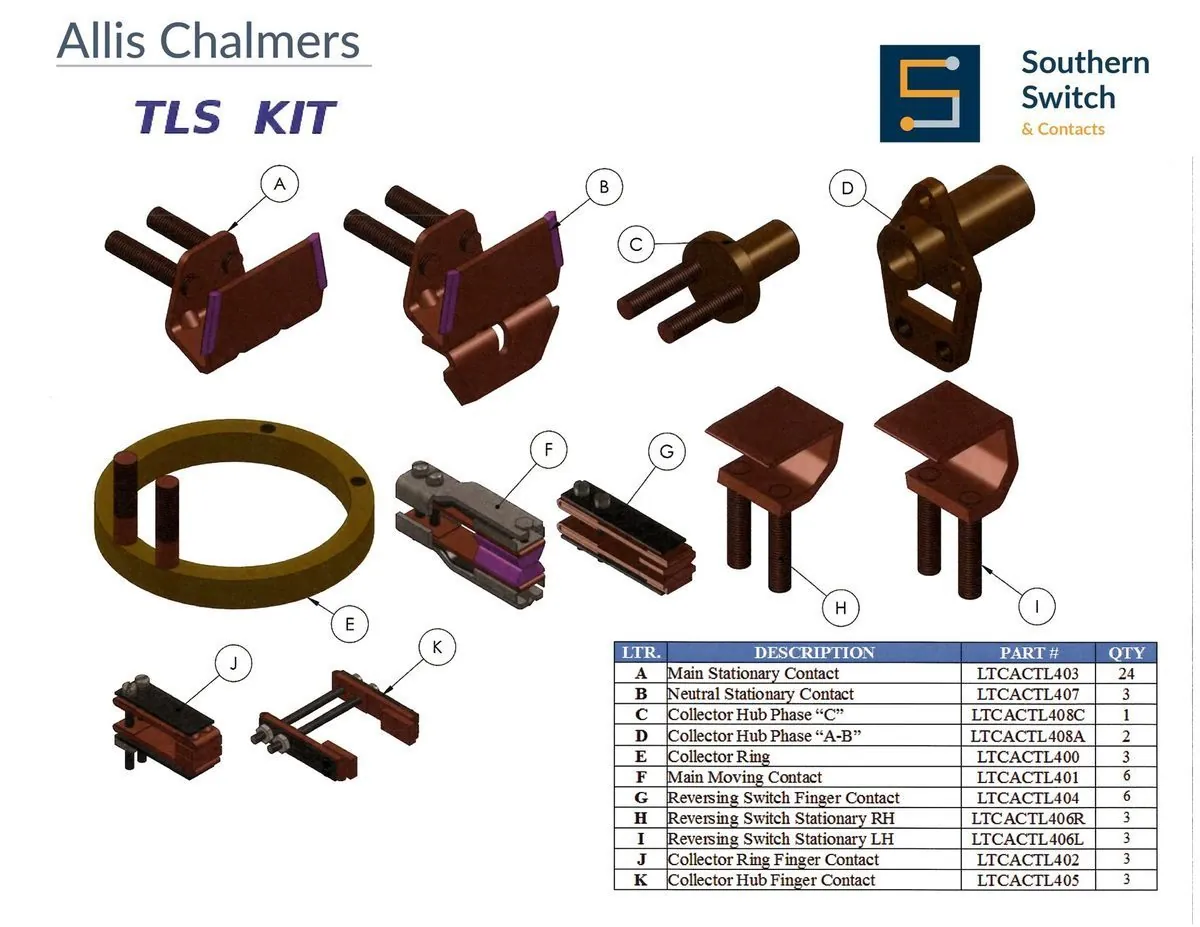

What we find when the LTC finally comes apart

Arcing contacts get replaced every time. We have not opened an LTC past the manufacturer's inspection interval where the arcing contacts were still serviceable. They are sacrificial parts and they have done their job.

Main moving contacts come back fifty-fifty. If the previous service was within interval, we can usually re-face them and reinstall. Past the interval by more than 25%, they go to scrap and get replaced.

Stationary contacts are usually serviceable. They wear slower than moving contacts because the arcing energy does not transfer to them as readily. Spring tension is the more common failure than wear.

Diverter-switch transition resistors get checked but rarely replaced. They are robust. The failure mode is cracking from thermal cycling, and you catch it on the bench by measuring resistance.

Insulating components are case-by-case. Phenolic boards, fiber spacers, pressboard barriers. If the oil has been carbonized for years, the insulation has absorbed it and is degraded.

Building the maintenance file

Every LTC should have a file. Install date, manufacturer model and serial, annual tap-operation counter readings, DGA samples with dates and lab, prior refurbishment records, any operational anomalies and what was done.

Utilities that maintain that file know what they have. The ones that do not end up making expensive guesses. Either they pull units that did not need it, or they run units past failure. Both are expensive.

Refurbishment is almost always the answer

Replacing an LTC is rarely worth it. A 50-year-old Allis-Chalmers TLG can run reliably for another 20 years with a contact refurbishment and oil treatment. Full LTC replacement runs $80k to $200k when you add labor and downtime. A quality refurbishment with reverse-engineered contacts is a fraction of that.

The exceptions: catastrophic mechanical damage that bent the diverter shaft, an insulation failure that compromised the LTC compartment, or a model so obsolete that even reverse-engineered parts are not economically justifiable. None of these come up often.

Planning the outage

An LTC refurbishment needs the transformer out of service. The work is three to five days for a single-phase pull and reinstall, five to ten for a three-phase. Stage the replacement contacts and bench-test them before the transformer comes offline.

If you are already taking the transformer down for an oil change, a bushing swap, or a relay upgrade, that is when the LTC inspection should happen too. The marginal outage cost is small once the transformer is already down.
